4 Channels COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver

Product Categories

Shenzhen DingShen Co., Ltd

Contact Now

Name: 4 Channels COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver
Brand: Ding Shen
Price: 1 USD

Brand Name : Ding Shen

Model Number : DS-DRB04

Place of Origin : Guangdong,china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 1000pcs/month

Delivery Time : 3-7 working days

Packaging Details : 520*430*210mm

Frequency : 300-900Mhz or other frequency customized

LCD monitor : 17inch

RF interface : N(F)

Modulation : COFDM

Bandwidth : 2/2.5/4/8MHz (adjustable)

Product name : 4 channels hd receiver

AV output : HD-MI, CVBS

Power supply : AC220V / DC12V

Contact Now

Specification:

briefcase portable COFDM radios with remote control
Frequency	300-900MHz/1.2G/2.4G/5.8GHz (optional)
Memory	1TB, 4 channel 48 hours recording
LCD monitor	17 inch
RF Level Input	-105dBm~-20dBm
RF Interface	N(F)
AV output	HDMI, CVBS
Modulation	COFDM
Power supply	AC220V / DC12V
Bandwidth	2/2.5/4/8MHz (adjustable)
Constellation	QPSK,16QAM,64QM
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Video Output	1 line PAL/NTSC analog video
Video Decoding	H.264/H.265
Resolution	1080P; 720P
Audio Output	Analog stereo left and right channels
Data encryption	AES 128/256 bits
Voltage	AC220V±20V, DC14V~DC16V
Work environment	-30~70°C
Built in Battery	14.8V, 10.2Ah, support 4ch 48 hours recording
Size	520430210mm
Weight	22kg

4 Channels COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver

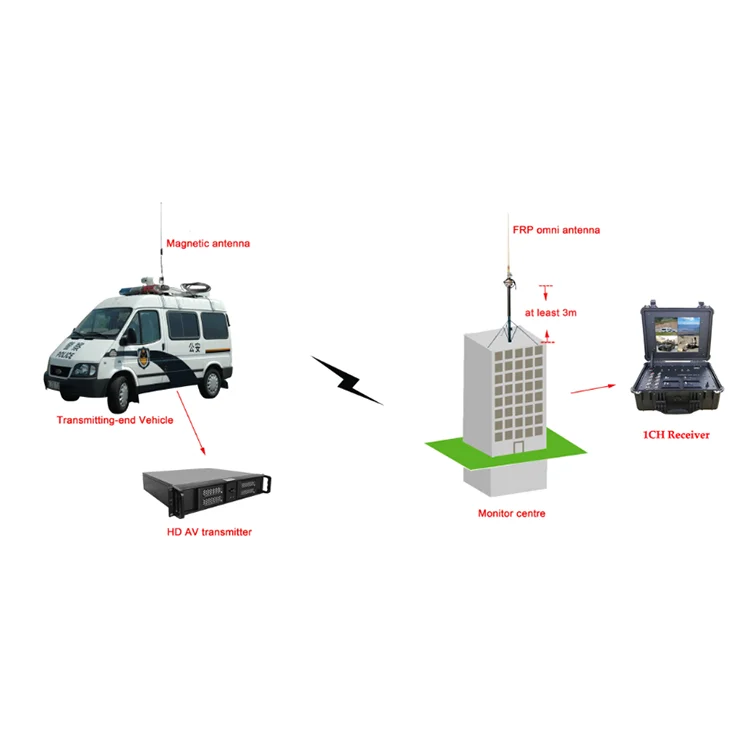

4 Channels COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver Images
